RX8 6 Speed Cable Clutch Kit for Honda K20/24 and Cologne Cosworth V6

A fabricated clutch fork, bearing spacer and pivot bracket for converting the 6 speed Mazda RX8 gearbox from hydraulic actuation to cable to suit a cable pedal box.

The clutch fork accepts the standard Mk1 and Mk2 Escort style clutch cable end. The cable can be easily adjusted with the 2 nuts on it that pass through the mounting lug on the adaptor plate.

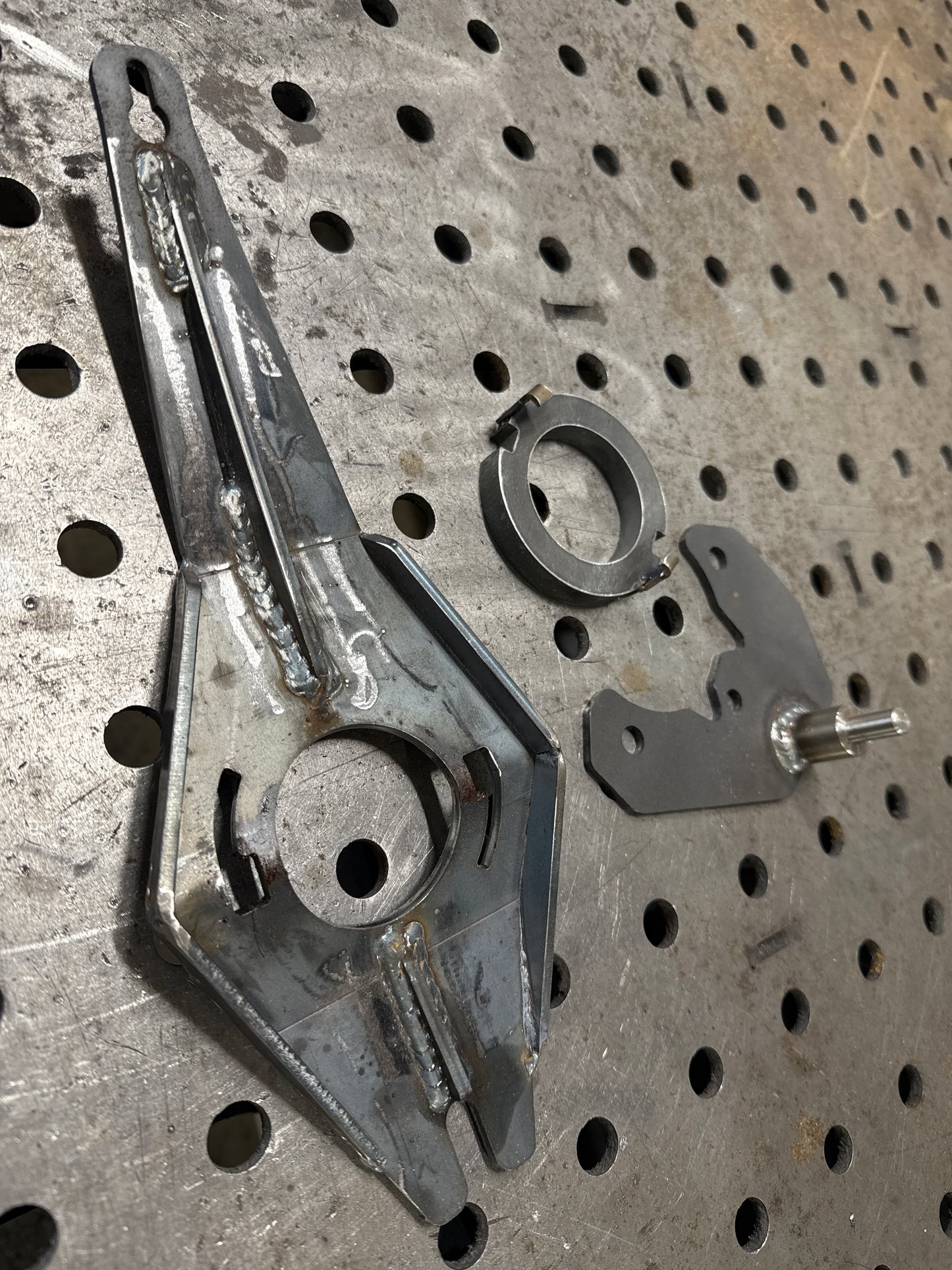

The kit contains a bracket that fixes into the gearbox bellhousing utilising existing bolt holes, a fabricated clutch fork bracket and release bearing 12mm spacer.

The standard Mazda release bearing is used with this conversion kit which can be bought here - Release bearing.

The fitting guide can be found here.

These will not work with twin plate clutches.
