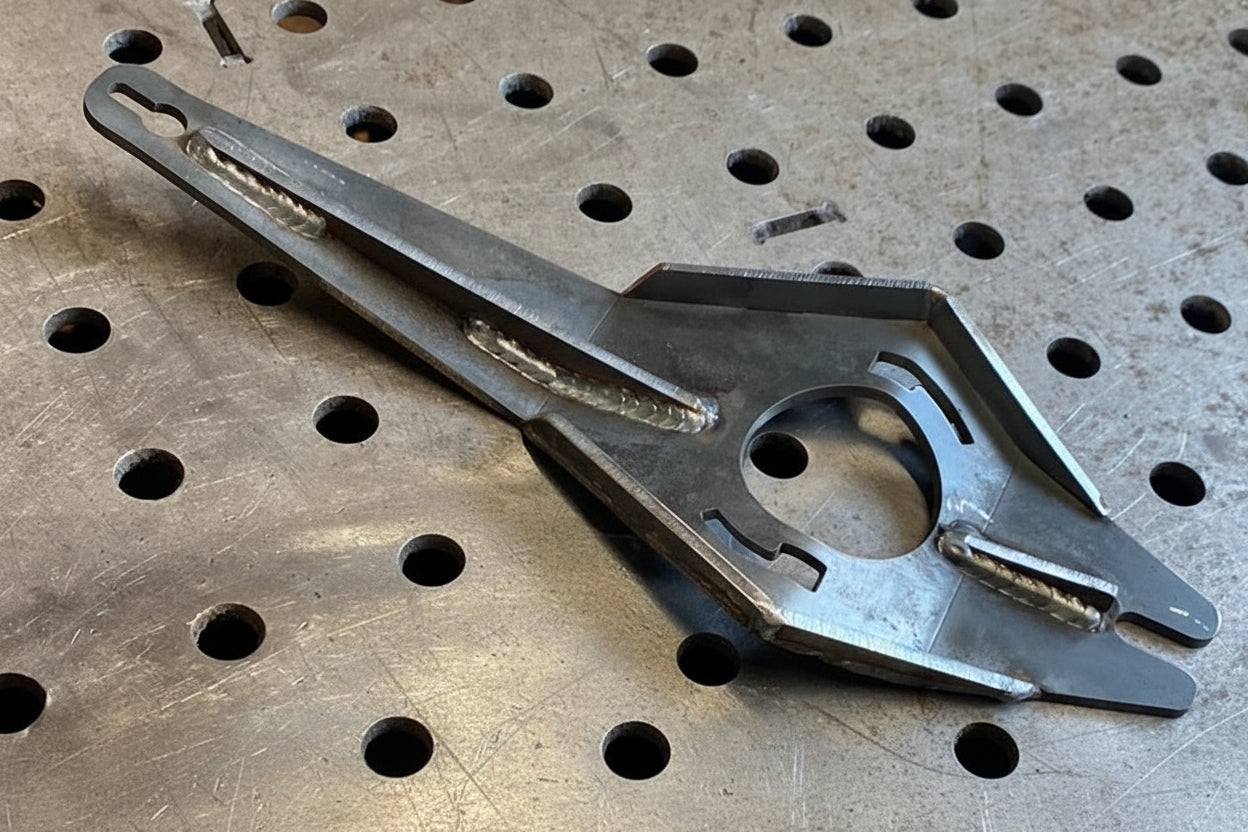

MX5 NC 5 speed, RX8 5 and 6 speed Cable Clutch Fork

A fabricated clutch fork for converting the 5 and 6 speed Mazda RX8 and Mazda MX5 NC 5 speed gearbox from hydraulic actuation to cable to suit a cable pedal box.

This is the same fork as used in our conversion kits on all 3 gearboxes.

The clutch fork accepts the standard Mk1 and Mk2 Escort style clutch cable end. The cable can be easily adjusted with the 2 nuts on it that pass through the mounting lug on the adaptor plate.

This fork is for when you just need a replacement fork. It is advised to purchase the complete kit for your engine setup with the relative pivot point and spacer if needed.

The standard Mazda release bearing is used with this conversion kit which can be bought here. Release bearing.

The fitting guide can be found here giving details of where to cut the hole in the side of the gearbox.
