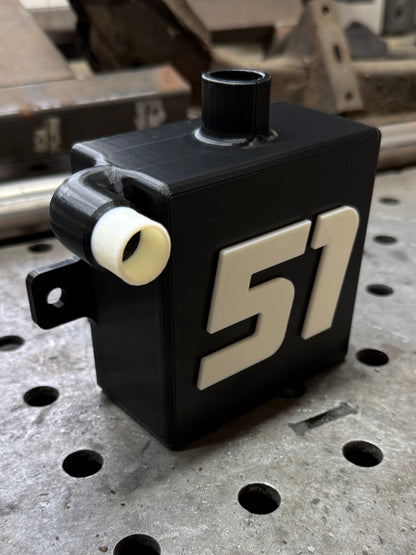

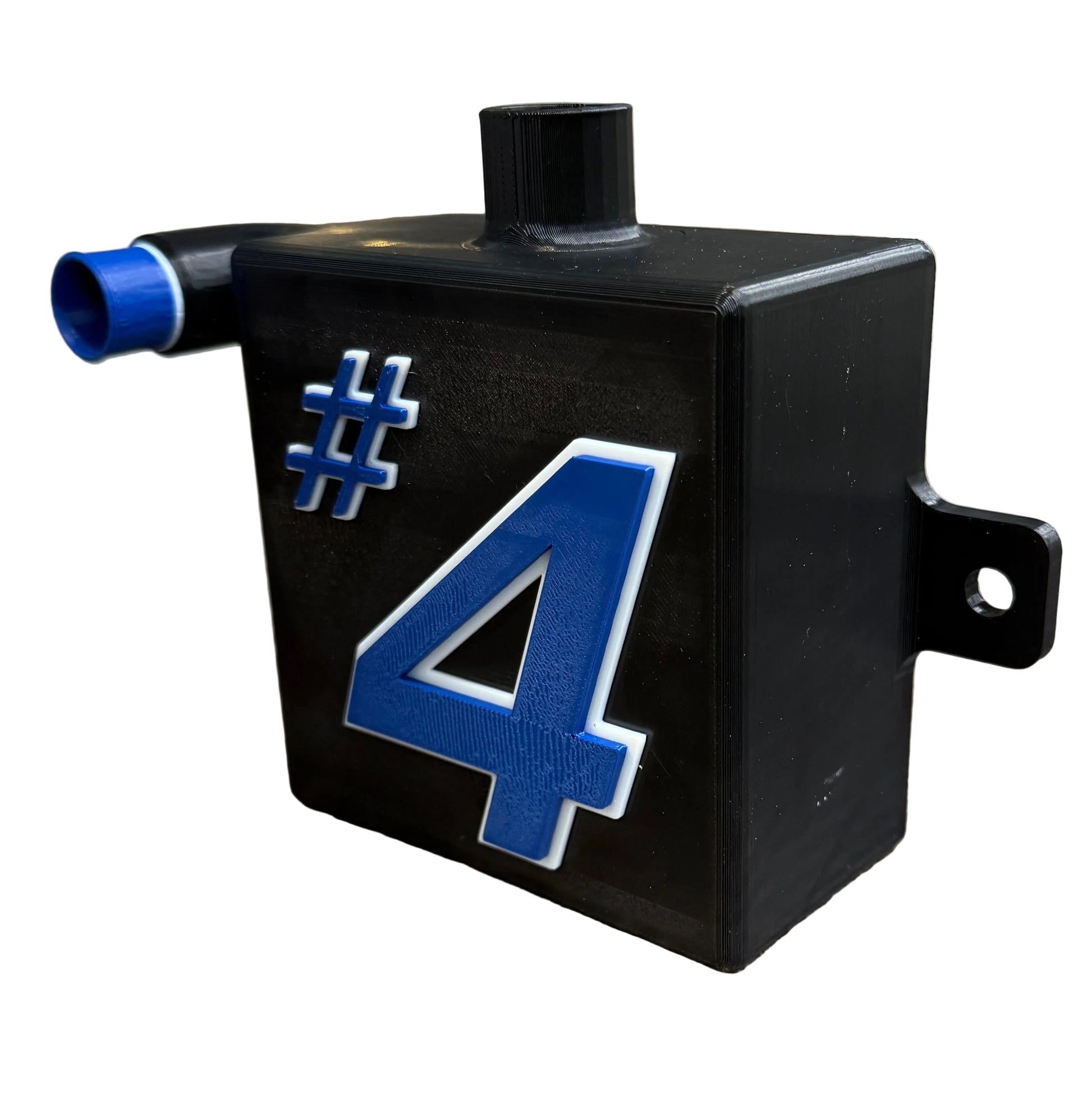

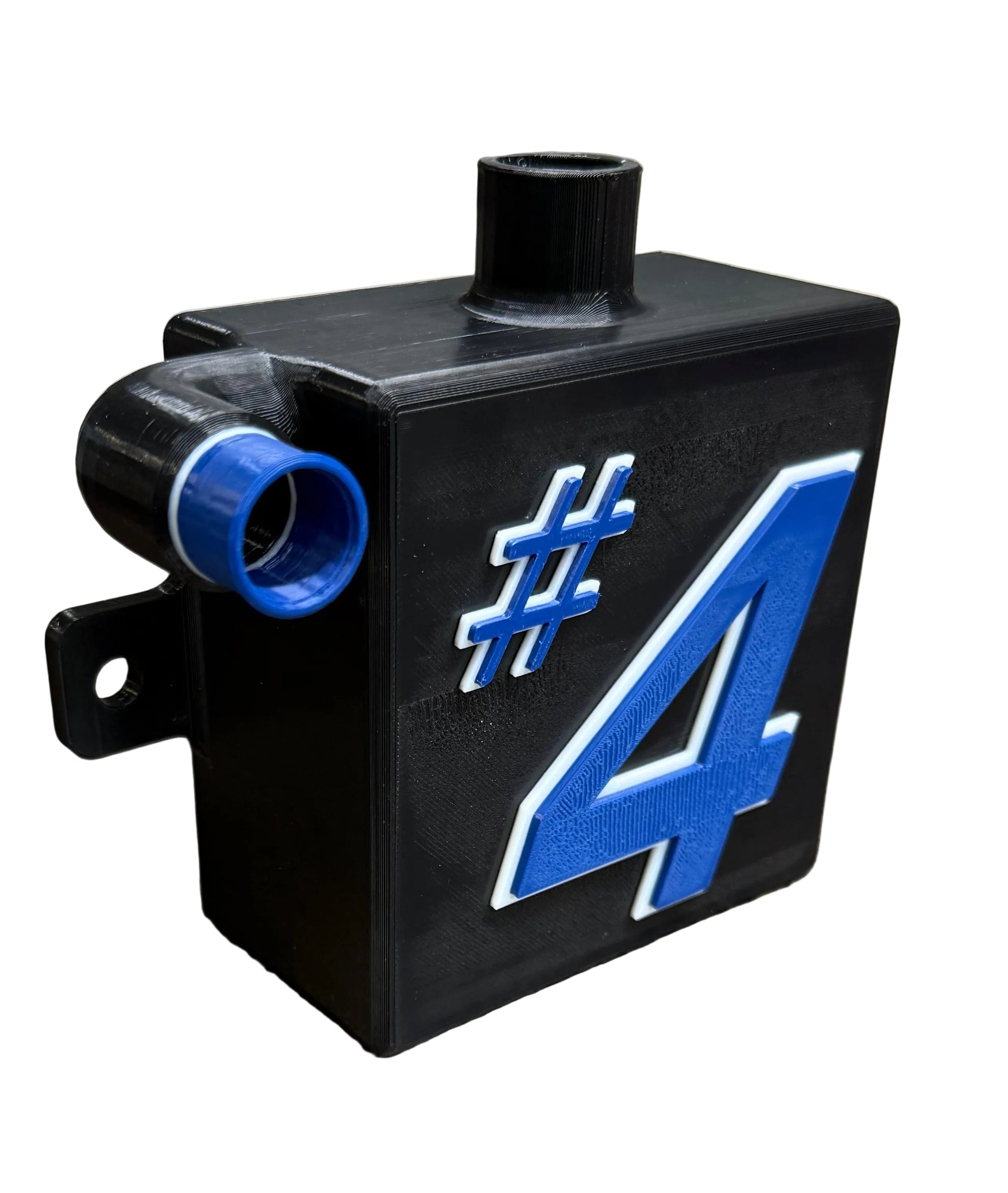

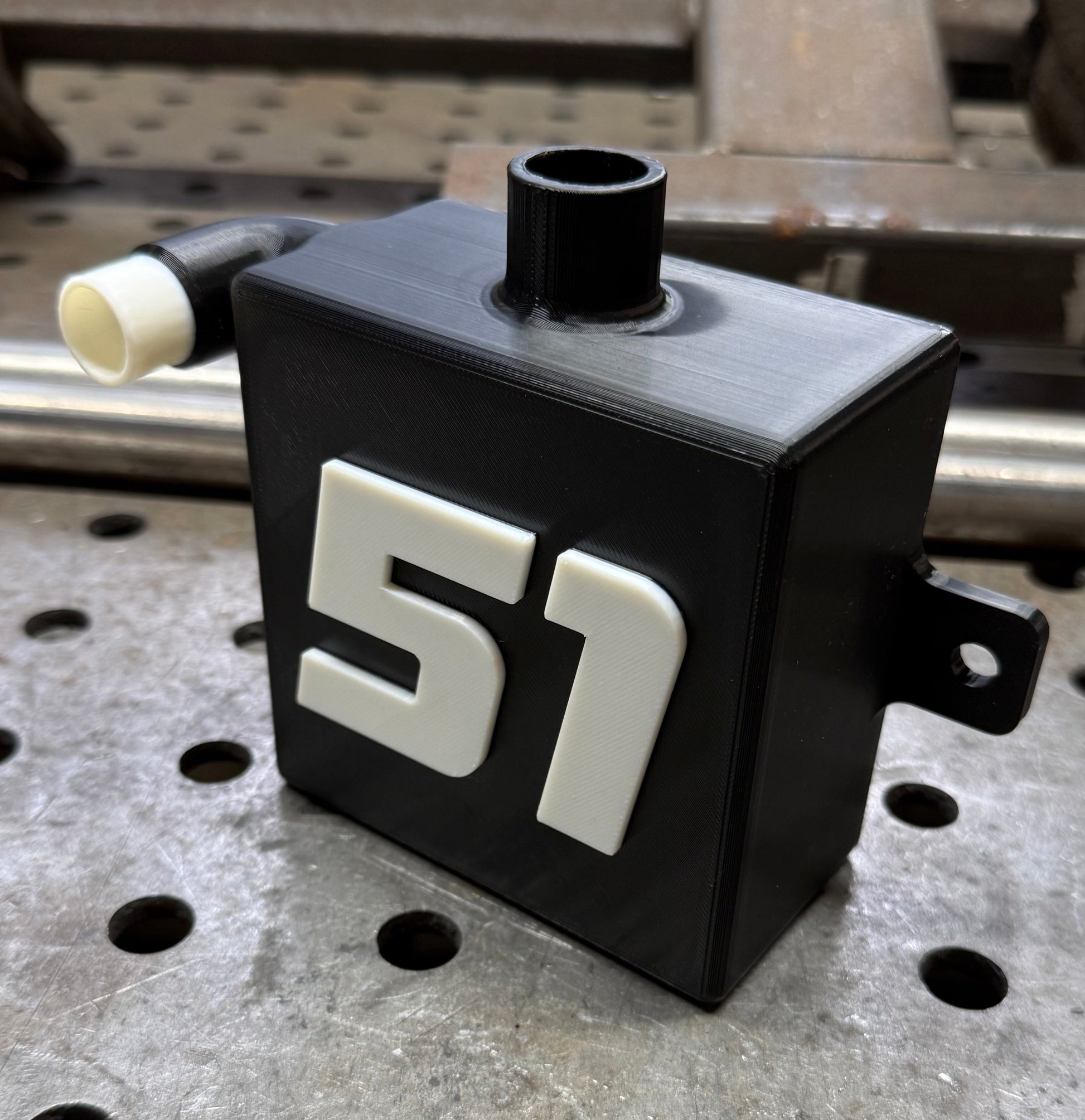

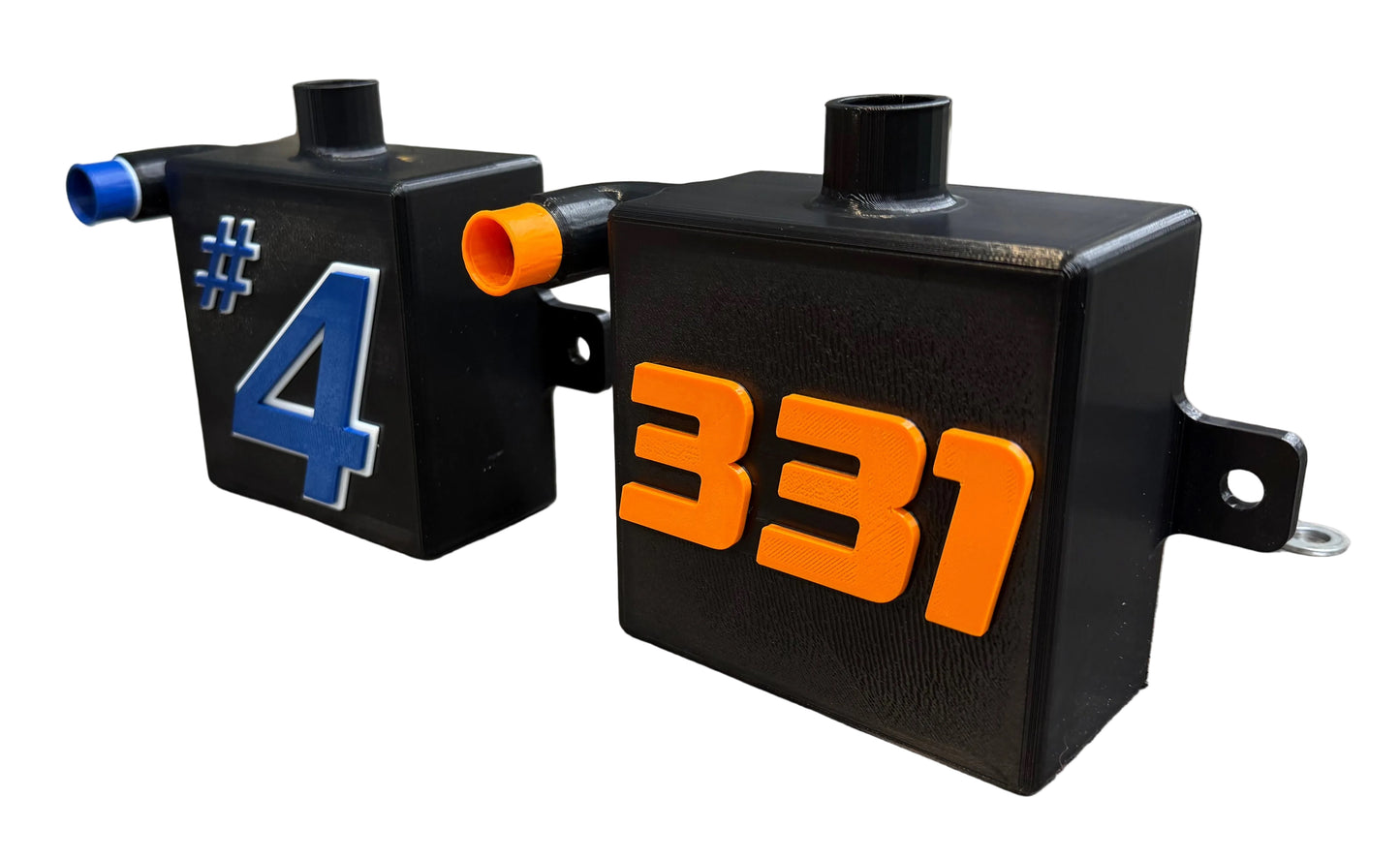

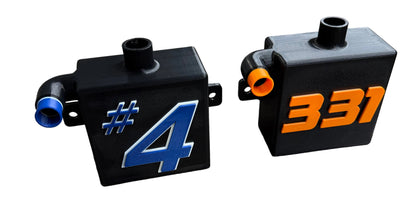

These 3D printed oil catch tanks are manufactured from ASA and are suitable for fitting under your bonnet and linking into your breather system to catch any oil and vapour that comes from your engine.
They hold 0.5litres so comply with most oval racing formula rules. They are just over 100mm wide and high and 60mm deep. There is a 19mm top outlet to add a small breather filter. The side inlet is 16mm, the same as zetec rocker cover breather and 19mm. You can specify 23mm if need be for 1400 8V vauxhall rocker cover breathers . Any size inlet and outlet can be specified if this size doesn’t suit your application. There are two 9mm diameter fixing holes and the tank comes complete with a set of M8 bolts, nuts and washers.
They come complete with your race number which needs to be specified when ordering. Colour options for the tank and number/lettering are: black, red, blue, orange, green and yellow. Other colours available on request. Specific font is also available upon request. If not it will have the ‘racing style’ font.
These are made to order but turn around is a couple of days.
Custom designs are also available upon request and some designs will be added in due course.
There is the option of left or right hand outlet and elbow or straight.
