MX5 NC N7 5 speed Hydraulic concentric release kit

A kit to convert what is normally an externally mounted slave cylinder on the MX5 NC N7 5 speed gearbox to a hydraulic concentric release.

With many cars there are clearance issues with the external cylinder clashing with the exhaust so this kit does away with the external cylinder and puts the clutch release mechanism inside the box.

This kit is setup to suit the 90mm clutch height on a pinto or Zetec that is using an 1800 flywheel and pinto clutch.

PLEASE CHECK YOUR CLUTCH HEIGHT BEFORE ORDERING AS SHIMS MAY BE REQUIRED

For other engines or different clutch heights plus get in touch before ordering to confirm the mounting plate spacer length.

The kit contains the following parts:

• Mounting plate
• 2 off Mounting bolts for bolting the mounting plate to the bellhousing
• 3 off Mounting bolts for bolting the slave cylinder to the mounting plate
• Hydraulic concentric slave cylinder with bearing

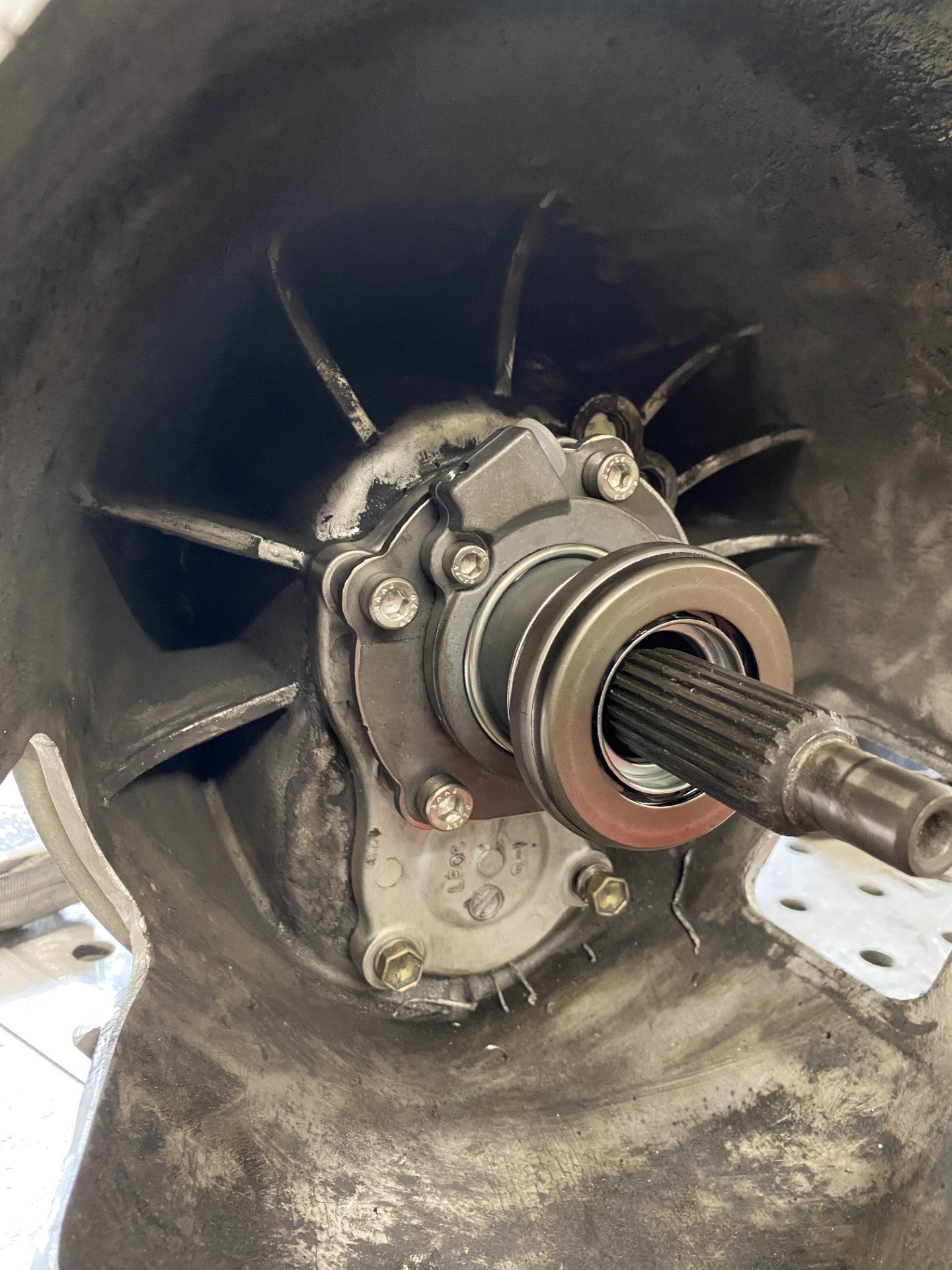

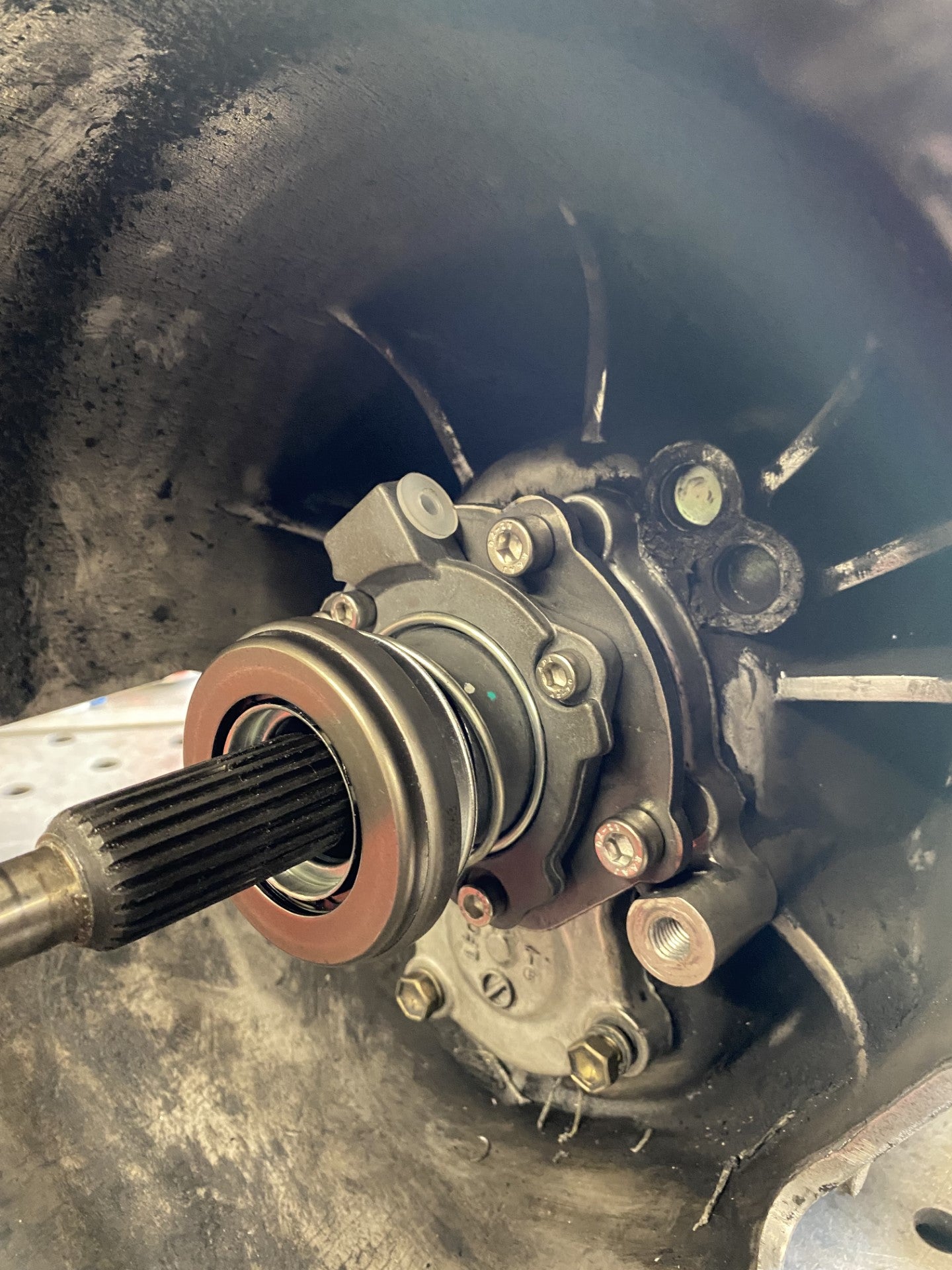

Instructions for fitting the kit are shown in the pictures.
