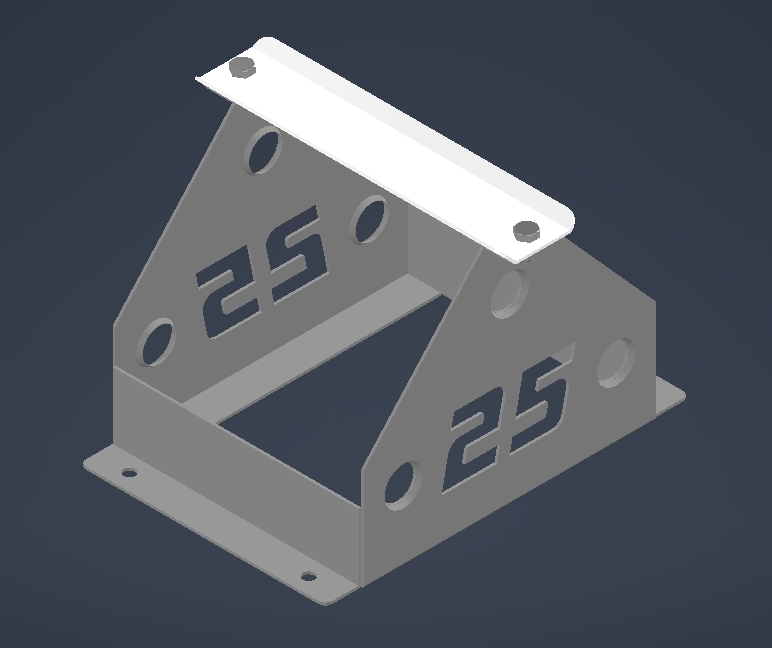

Lightweight Alloy Battery Tray With Your Race Number 063/075 size

These lightweight alloy battery trays are designed to suit a standard 063 or 075 size battery that has measurements of approximately 210mm long (063) or 250mm long (075 size) x 175mm wide and 175mm high.

They will be custom cut with your race number for no additional cost. Please add your race number into the telephone number field when checking out.

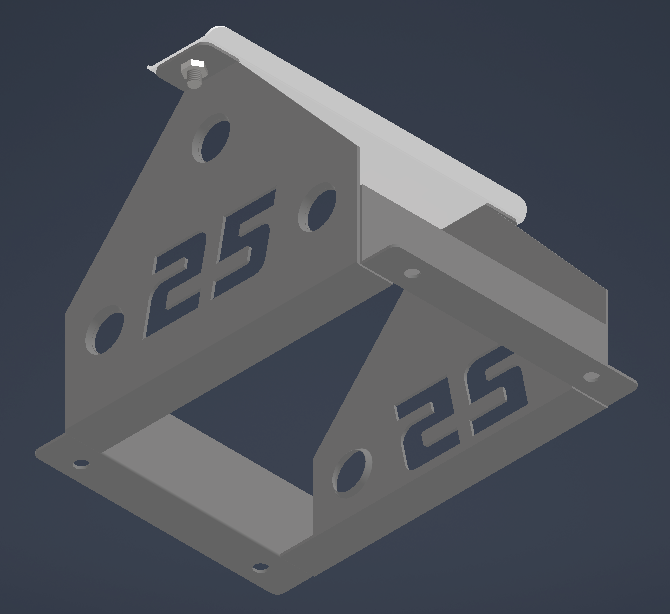

They come with 4 holes in the base to bolt down easily and have a removable top bracket that is held in place by 2 bolts with retained nuts in the main carrier. The body is dimpled to reduce flex.

Overall length including bottom flanges is 275mm (063), 325mm (075) and has an overall width of 240mm as the top strap is wider than the base. Hole centres are 135mm and 9mm diameter.

They come with a piece of rubber to go between the top strap and the battery.

We can produce any custom size and design of tray if required.

Turnaround is usually 2-3 days plus delivery, these are stocked as blank sides, with the numbers cut when ordered.
