RX8 & MX5 Universal Gearbox Mount/Crossmember

This gearbox mount/crossmember is a 4 part unit that is height adjustable and comes complete with rubber bushing. The mount is designed to bolt to the 2004-2008 5 and 6 speed RX8 gearboxes and the 5 speed N7/NC MX5 gearbox.

The mount is designed to span the width of your tunnel and can be mounted by drilling holes through your floor and bolting in place or you can weld some brackets to your tunnel and pick up on the inner set of holes.

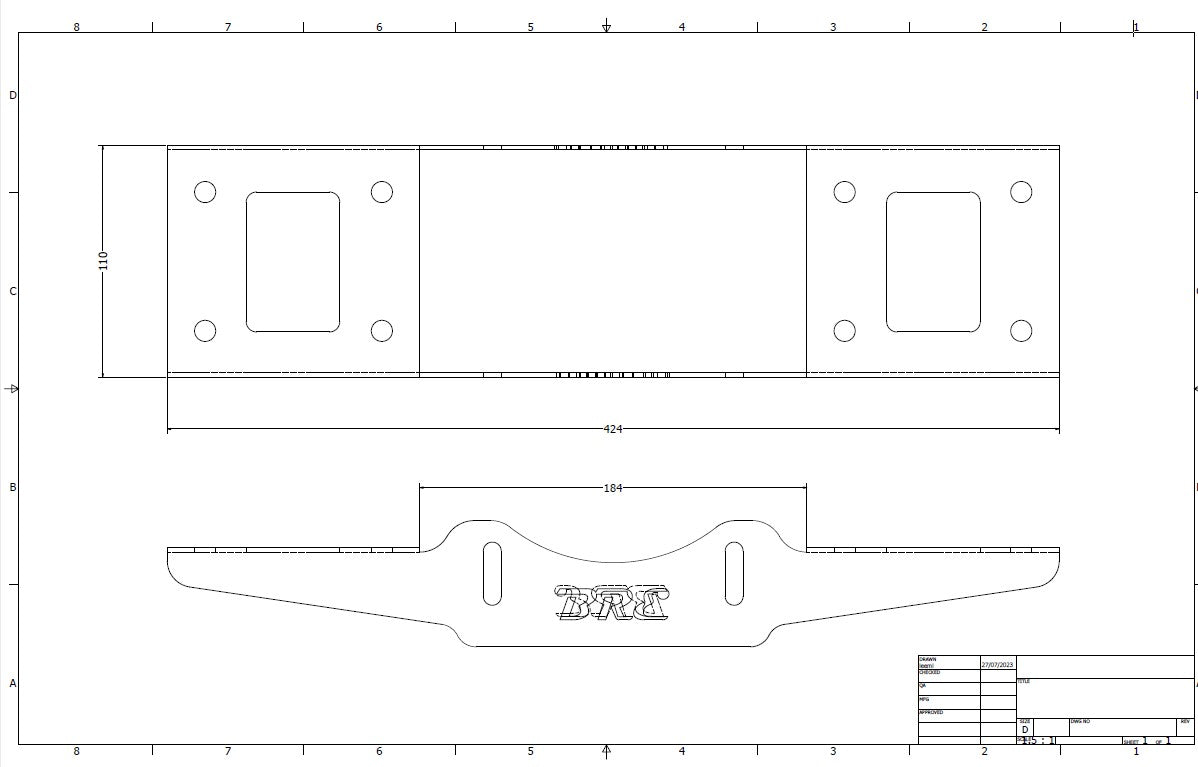

The dimensions of the units can be seen in the attached drawing.
