RX8 6 speed cable clutch fork and bracket
RX8 6 speed cable clutch fork and bracket
A fabricated clutch fork and pivot bracket for converting the 6 speed Mazda RX8 gearbox from hydraulic actuation to cable to suit a cable pedal box.
The clutch fork accepts the standard Mk1 and Mk2 Escort style clutch cable end. The cable can be easily adjusted with the 2 nuts on it that pass through the mounting lug on the adaptor plate.

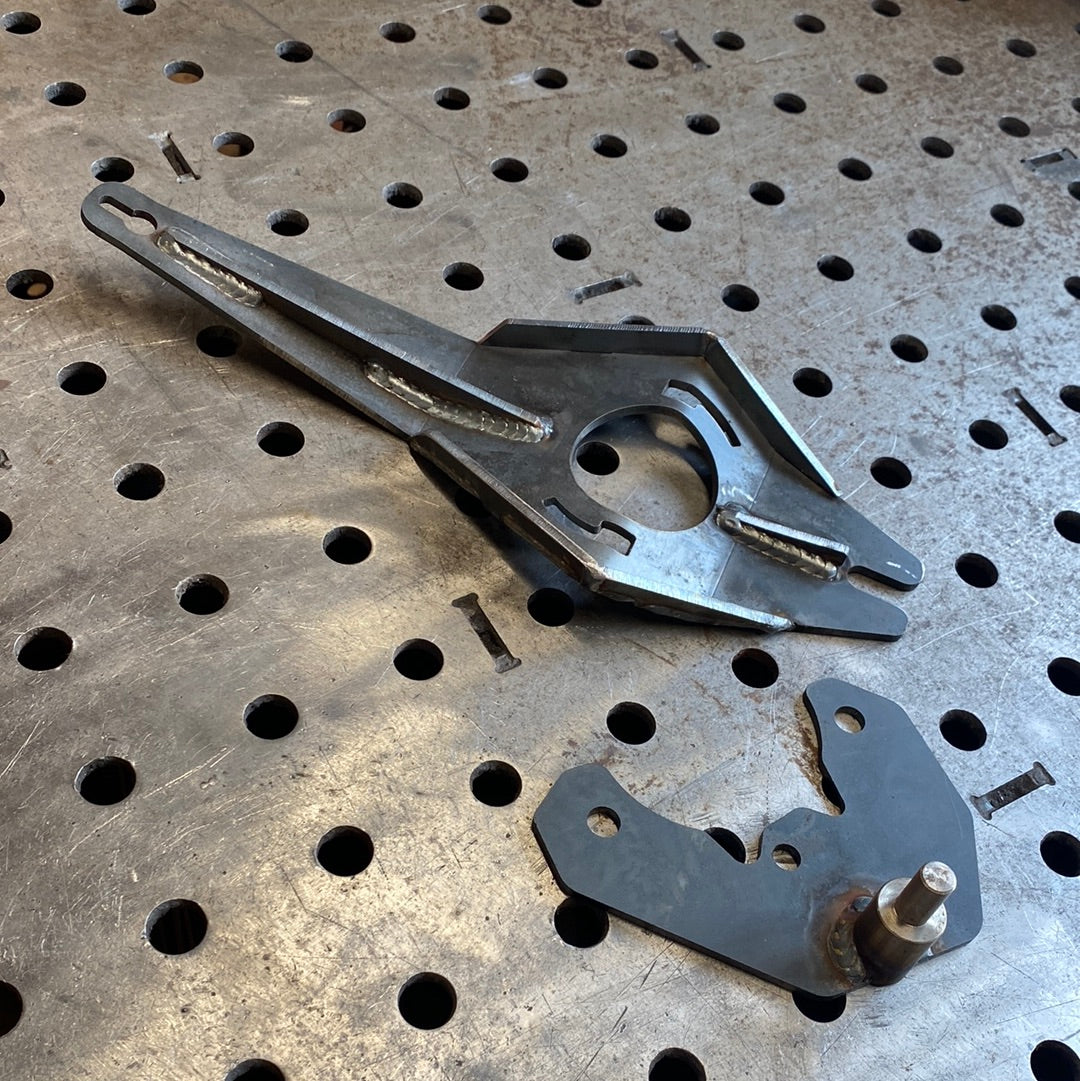

The kit contains a bracket that fixes into the gearbox bellhousing utilising existing bolt holes and a fabricated clutch fork bracket.
The standard Mazda release bearing is used with this conversion kit which can be bought here. Release bearing.

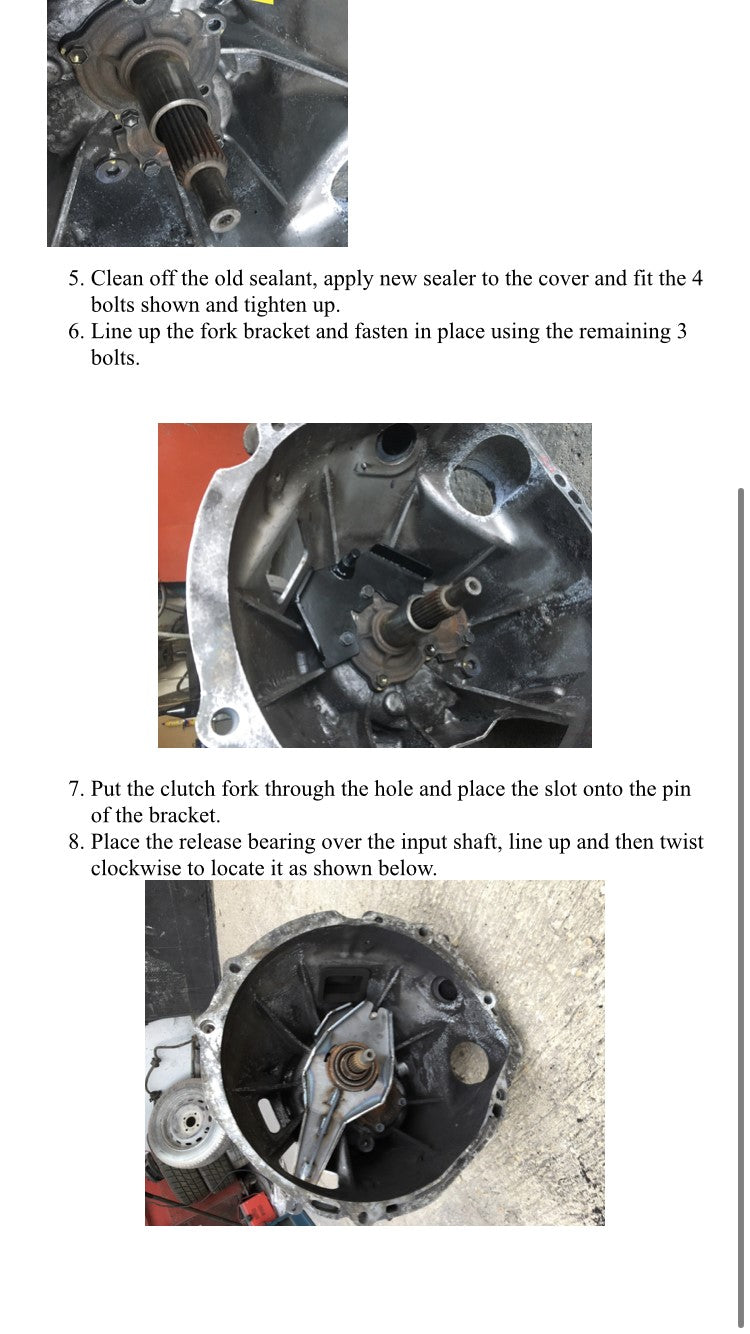

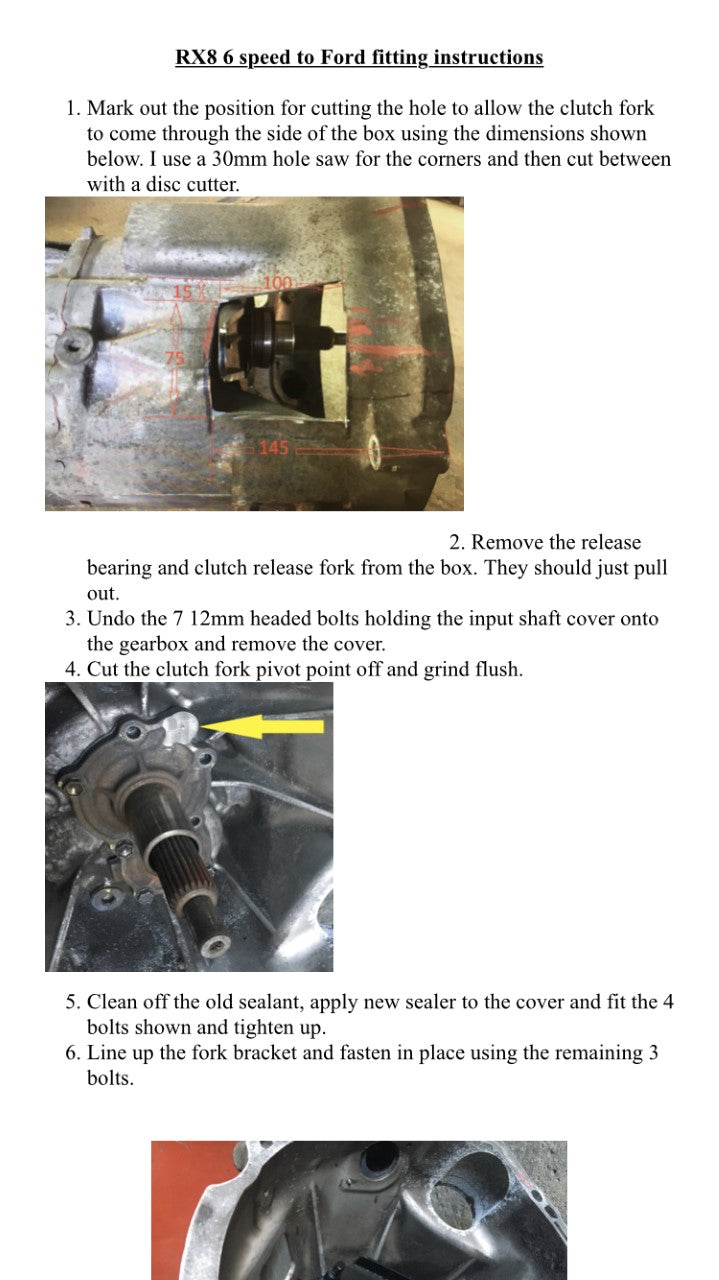

The fitting guide is also shown below giving details of where to cut the hole in the side of the gearbox.
These will not work with twin plate clutches.
